🔷Point Cloud Project to Plane

Function Description

This operator is used to project each point in the input point cloud data onto one or more user-defined geometric planes. The target projection planes can be specified by providing plane equations or plane normal vectors.

Usage Scenarios

  • Data analysis: Projecting three-dimensional point clouds onto two-dimensional planes can simplify analysis, such as observing point distribution on specific cross-sections or preparing for subsequent two-dimensional image processing algorithms.

  • Feature extraction: Before performing shape recognition or feature description, projecting point clouds onto specific planes may help highlight certain geometric features.

  • Positioning and alignment: By projecting point clouds onto known planes (such as ground, tabletop), it can assist in determining object positions or performing pose alignment.

Input Output

Input

Point cloud: Input point cloud or point cloud list.

Projection axis: A list containing projection axis/plane information corresponding one-to-one with the input point cloud list.

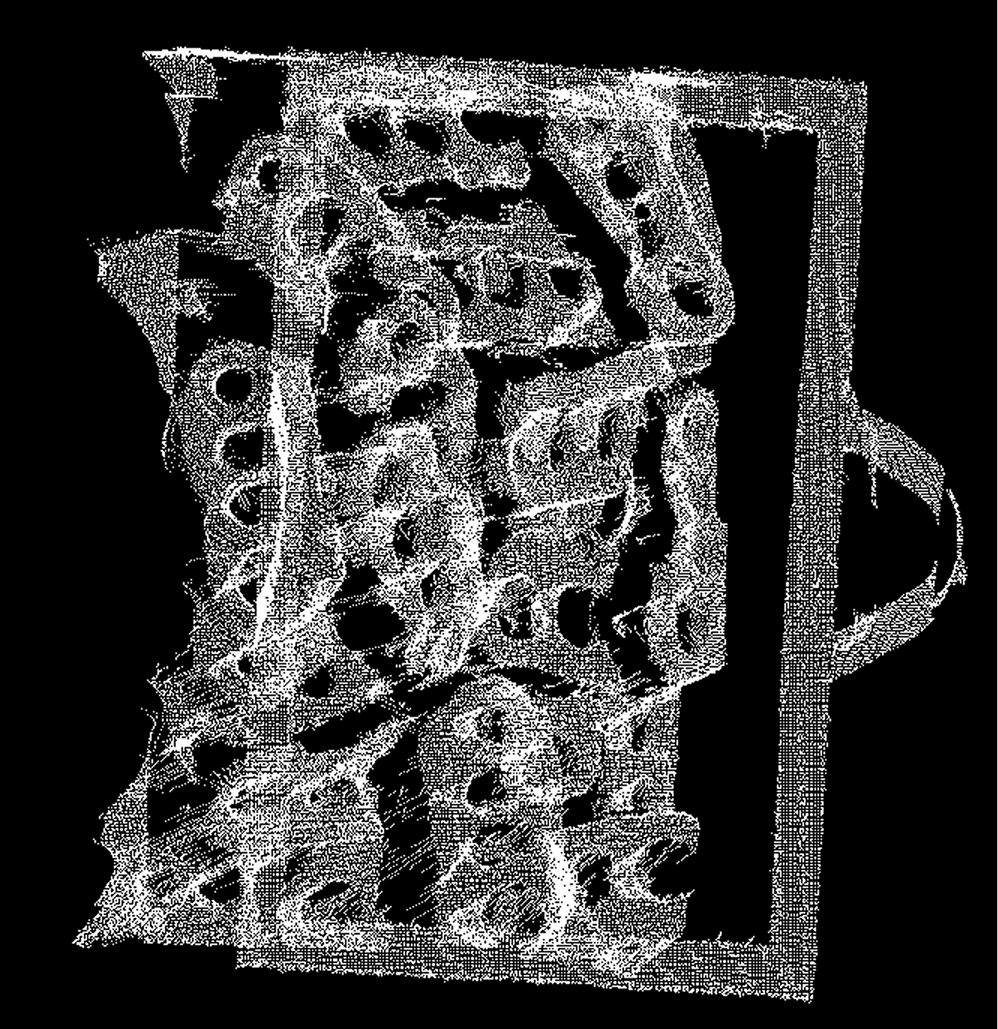

CloudProjectToPlane input

Output

Projected point cloud: Point cloud list remaining after projection filtering.

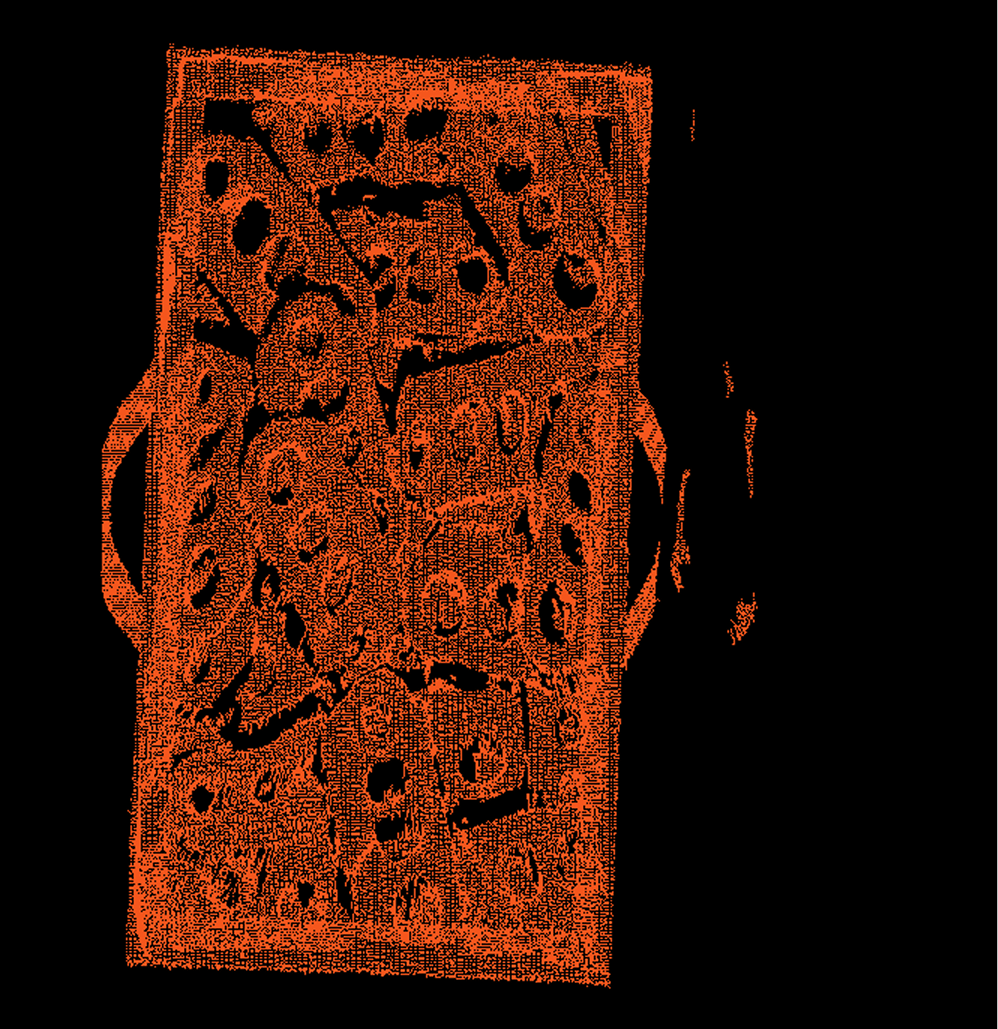

CloudProjectToPlane output

Parameter Description

This operator has two versions:

  • Point Cloud Project to Plane: Processes point clouds without normal information.

  • Point Cloud Project to Plane (with normals): Processes point clouds with normal information.

Both have identical core functionality, differing only in the type of point cloud data they process. The output convex hull point cloud will retain the input point cloud type.

The input point cloud list and projection axis list must correspond one-to-one.

Enable Node

Parameter Description

Controls whether this operator executes calculations.

Parameter Adjustment

  • Enabled (default): Normal operation of this operator’s functionality.

  • Disabled: The operator does not perform any operations and directly outputs the input data.
