Merge Point Cloud

Functional Description

This operator can take two independent point clouds (or lists of point clouds) as input and directly merge/concatenate all point cloud data from these two input ports into a single, larger point cloud output.

Usage Scenarios

  • Point Cloud Data Integration: Merge point cloud data from different sources or different processing branches into a single entity.

  • Building a Complete Scene: Stitch together multiple separately acquired point cloud datasets.

Inputs and Outputs

Input Items

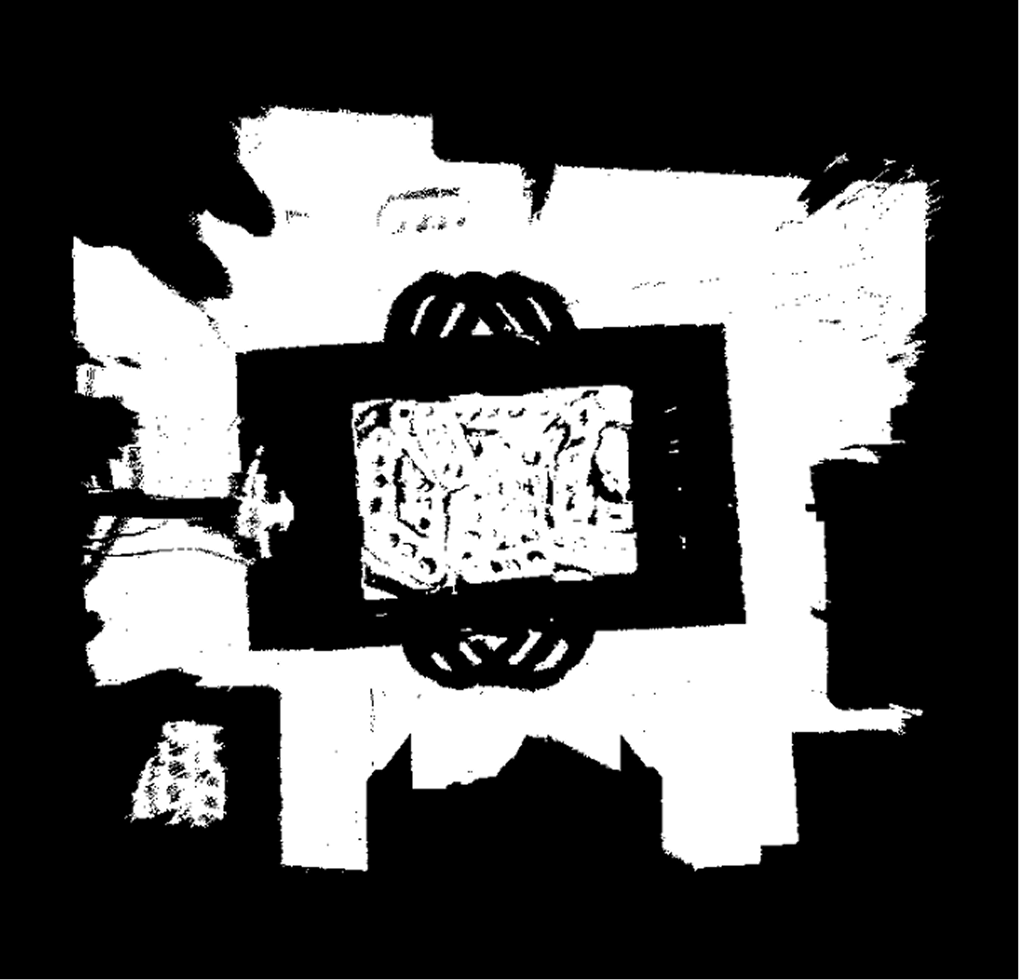

Point cloud 1: The first input point cloud or list of point clouds.

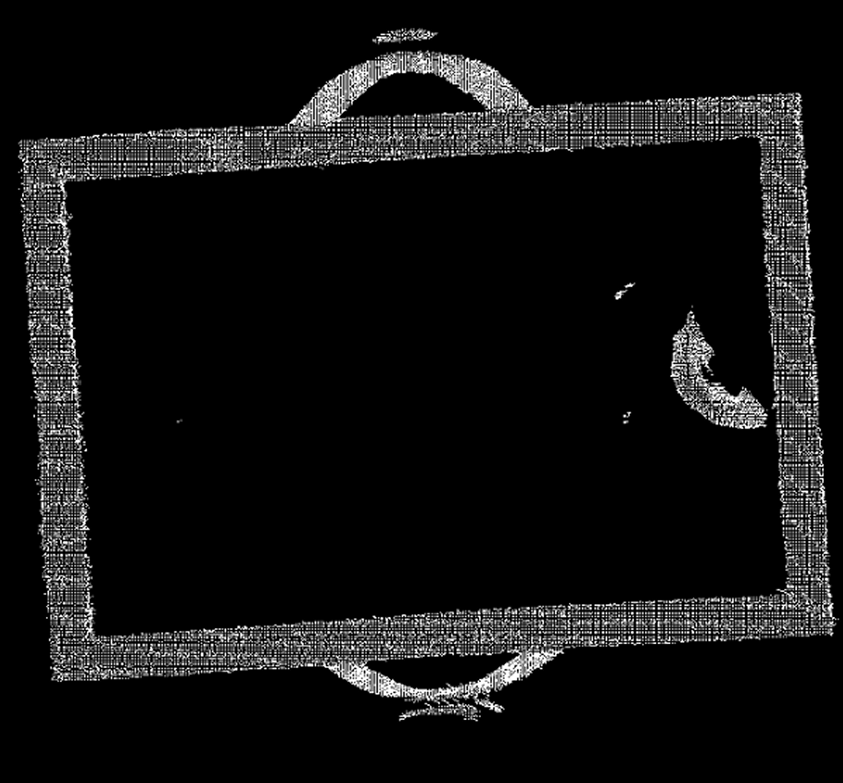

Point cloud 2: The second input point cloud or list of point clouds.

Output Items

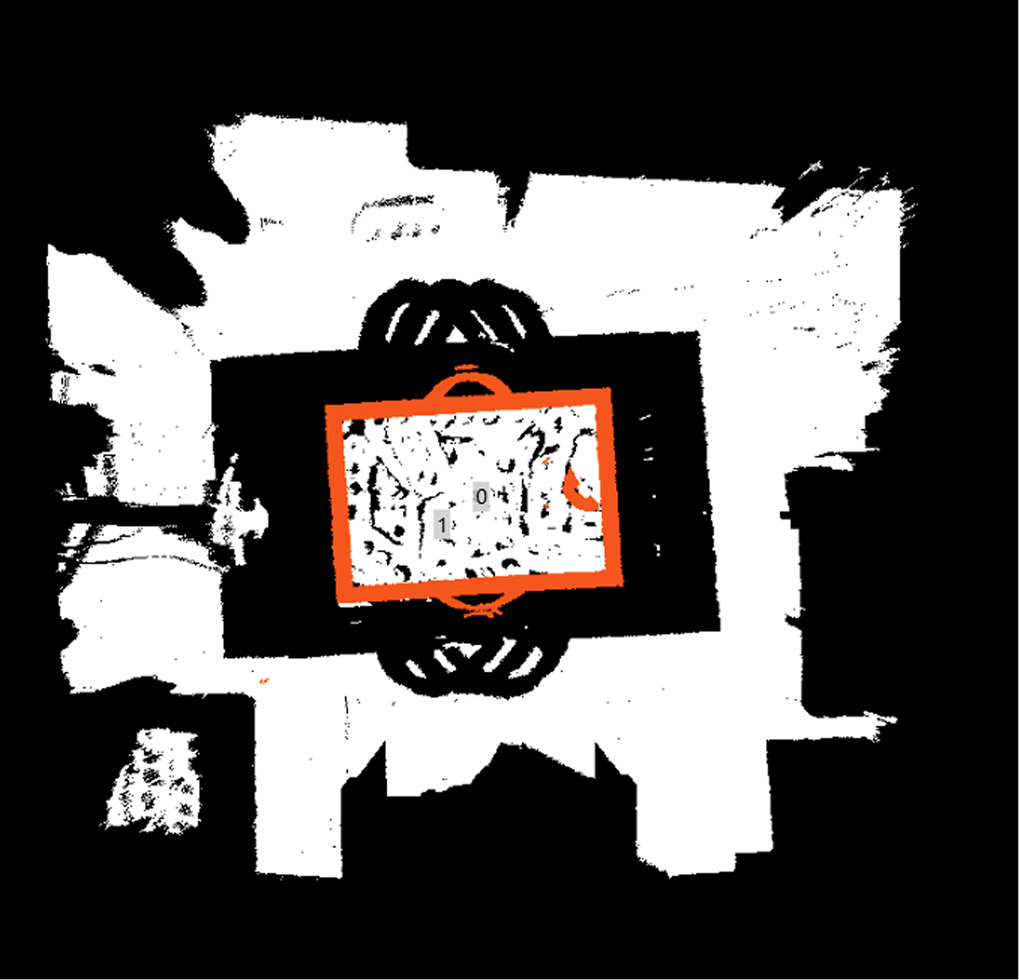

Merge Point Cloud: The single point cloud after merging all points from the two inputs.

Parameter Description

This operator has two versions:

  • Merge Point Cloud : Processes point clouds without normal information.

  • Merge Point Cloud(with Normals) : Processes point clouds with normal information.

Both have identical core functionality and parameters, only differing in the type of point cloud data they process.
