3D Coarse Matching
Introduction
Function Description

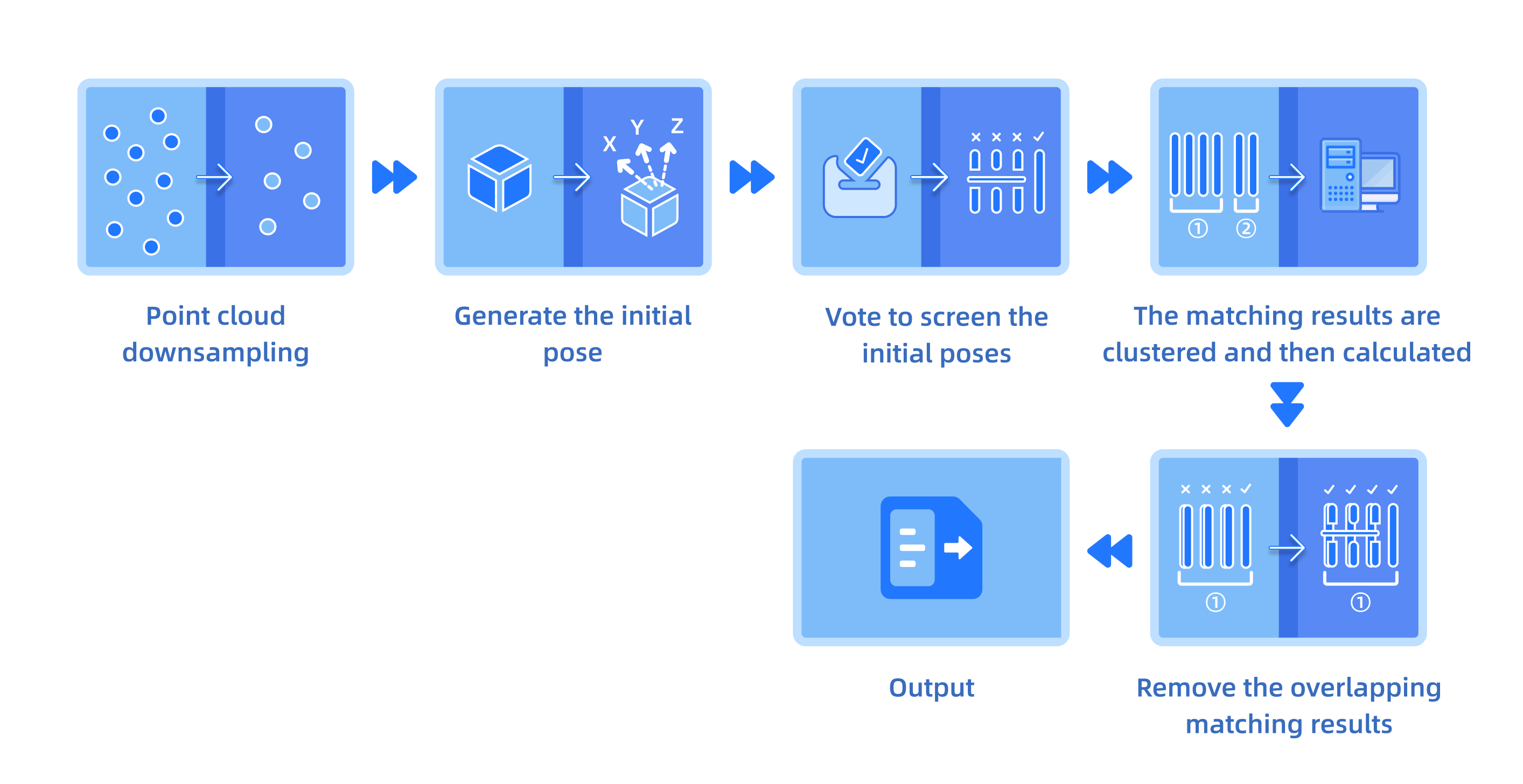

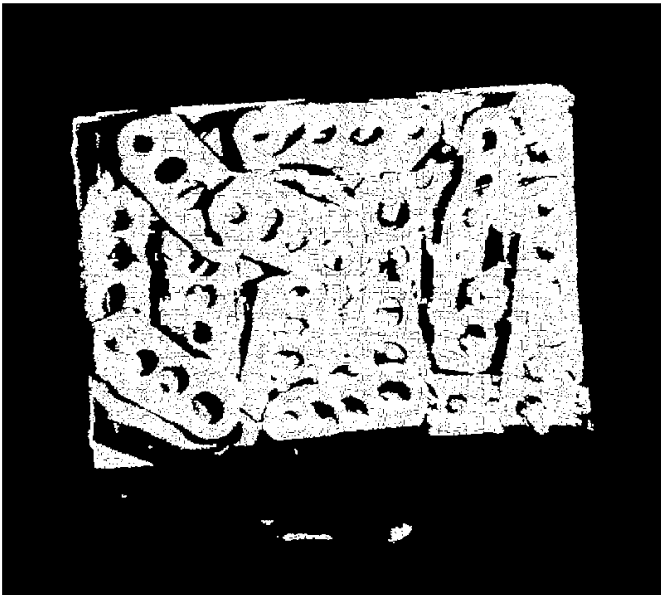

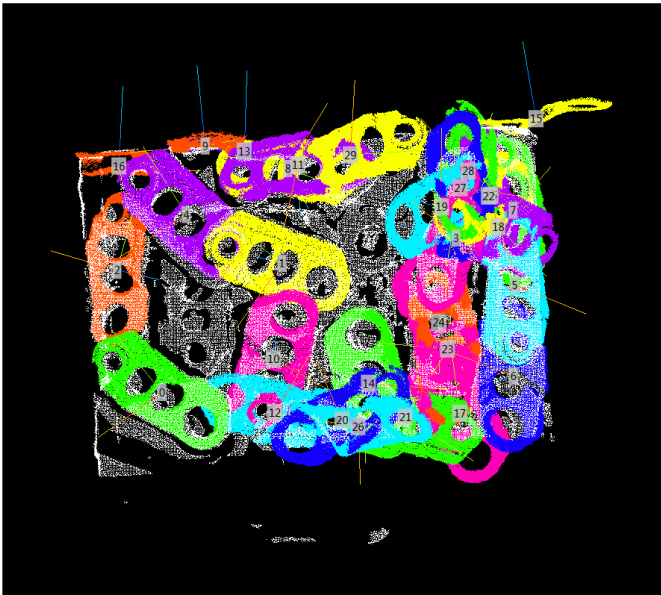

This operator performs matching calculations between the workpiece template point cloud and the scene point cloud captured by the camera, outputting the approximate pose of the workpiece.
Parameter Description
Parameter Settings
Model point cloud file
Parameter Description |
This parameter can select a point cloud template from the matching model library through mapping parameters or directly upload a workpiece template point cloud file. The uploaded point cloud file can also be downloaded. |
Model Switching Method |
Click [Upload File] to open a pop-up window, select the point cloud file to upload directly, or switch through mapping parameters. |
Distance discrete quantity
Default Value |
20 |
Parameter Range |
2-500 |
Parameter Description |
This parameter is used to process the number of point clouds involved in the matching calculation. It performs downsampling on the matching template and scene point cloud (distance interval = template size / distance discrete quantity). The larger the distance discrete quantity, the more point clouds are involved in the matching calculation, and vice versa. |
Tuning Instructions |
If the positional deviation of the matching result calculated with the default value is relatively large, this parameter can be appropriately increased. Increasing the number of points involved in the matching calculation can improve matching accuracy. Note that after increasing the parameter, the calculation time will also increase; if the calculation time with the default value is long and the positional deviation of the matching result is small, this parameter can be appropriately reduced to improve the cycle time. |
Effect |
|
|
|
|
|
Recommended Value |

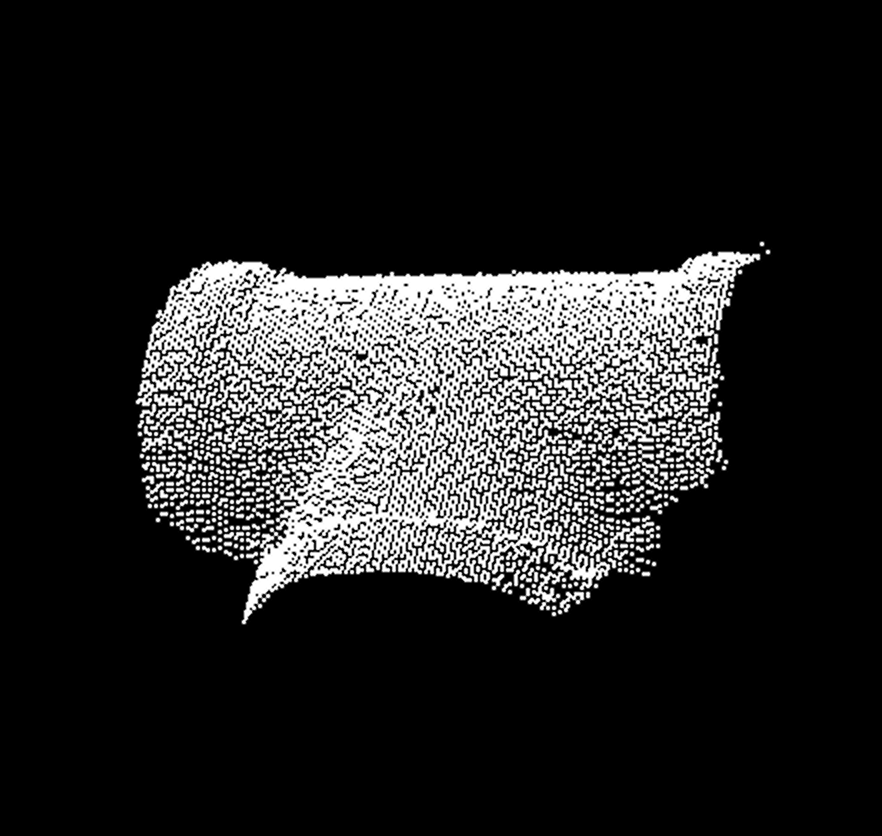

Raw point cloud |

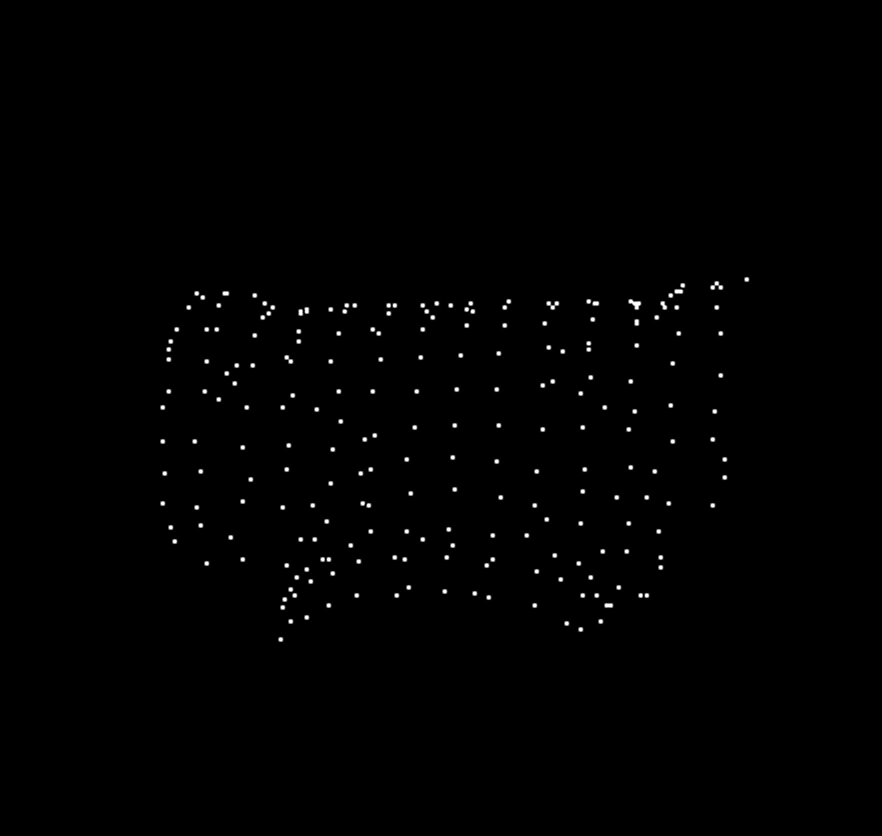

15 |

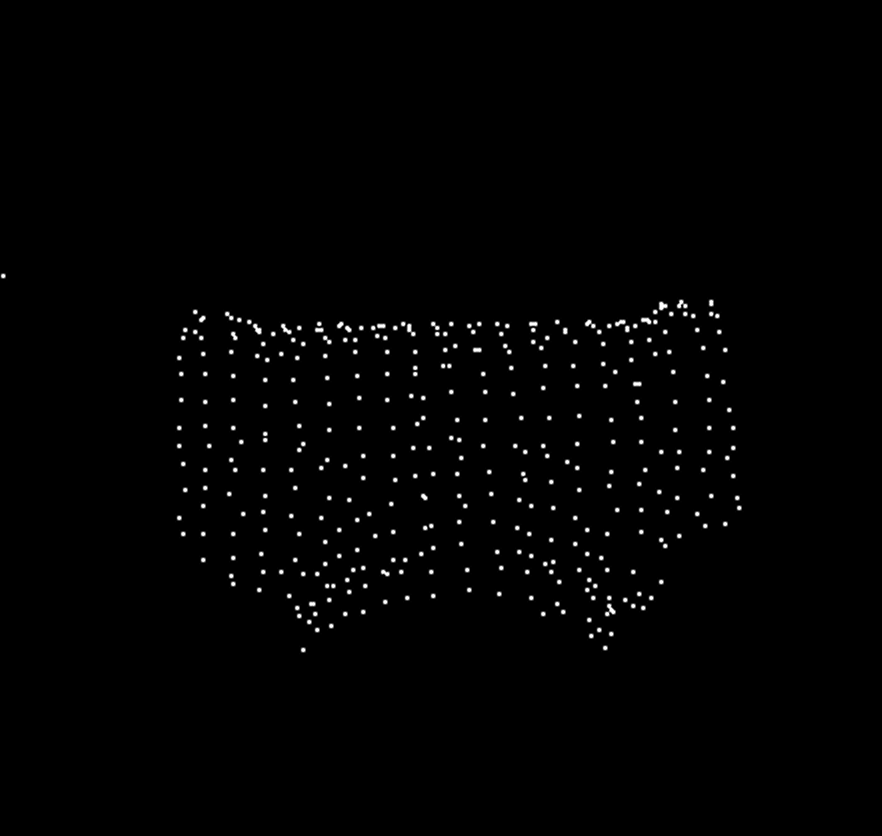

20 |

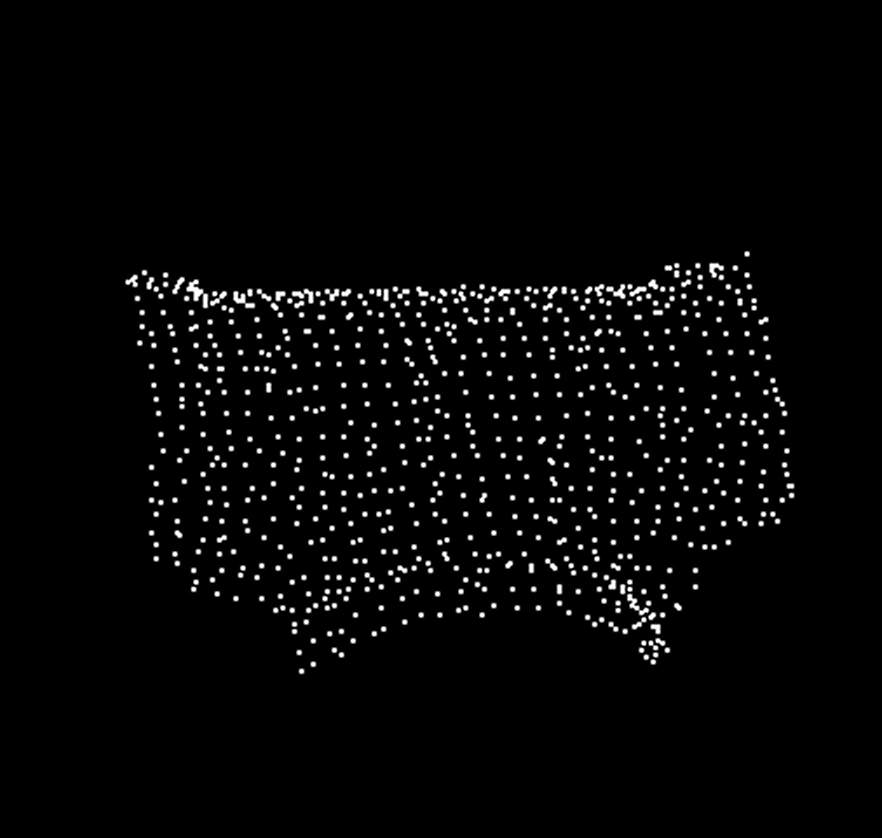

30 |

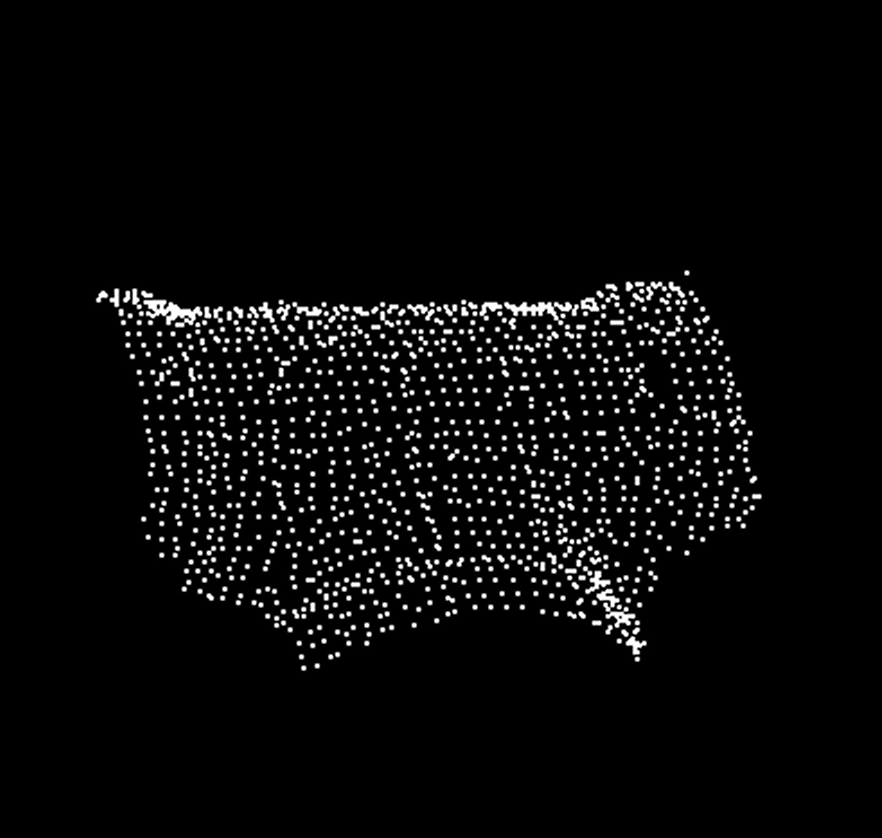

40 |
Angular discrete quantity
Default Value |
30 |
Parameter Range |
1-500 |
Parameter Description |
This parameter is used to quantify the angle value of the initial pose, i.e., to discretize continuous angle values into angle values with intervals (angle interval = 360 / angular discrete quantity); the larger this value, the higher the initial angle accuracy, and vice versa. |
Tuning Instructions |
Generally, this parameter is not adjusted. If the angle deviation of the matching result is relatively large, this parameter can be appropriately increased; |

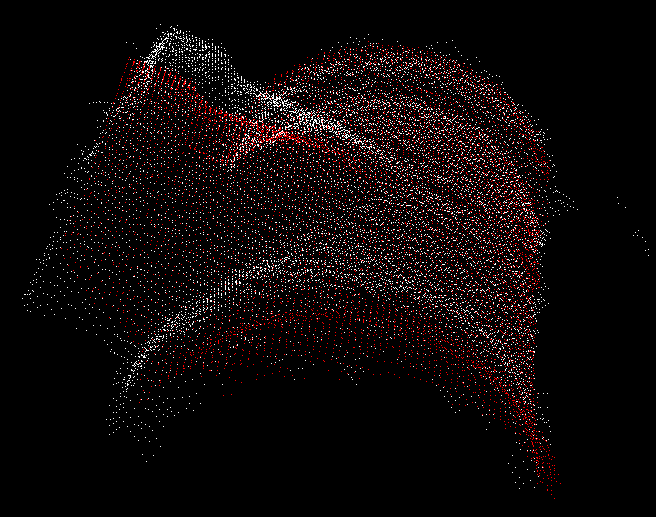

Effect |
|
|
Recommended Value |
20 |

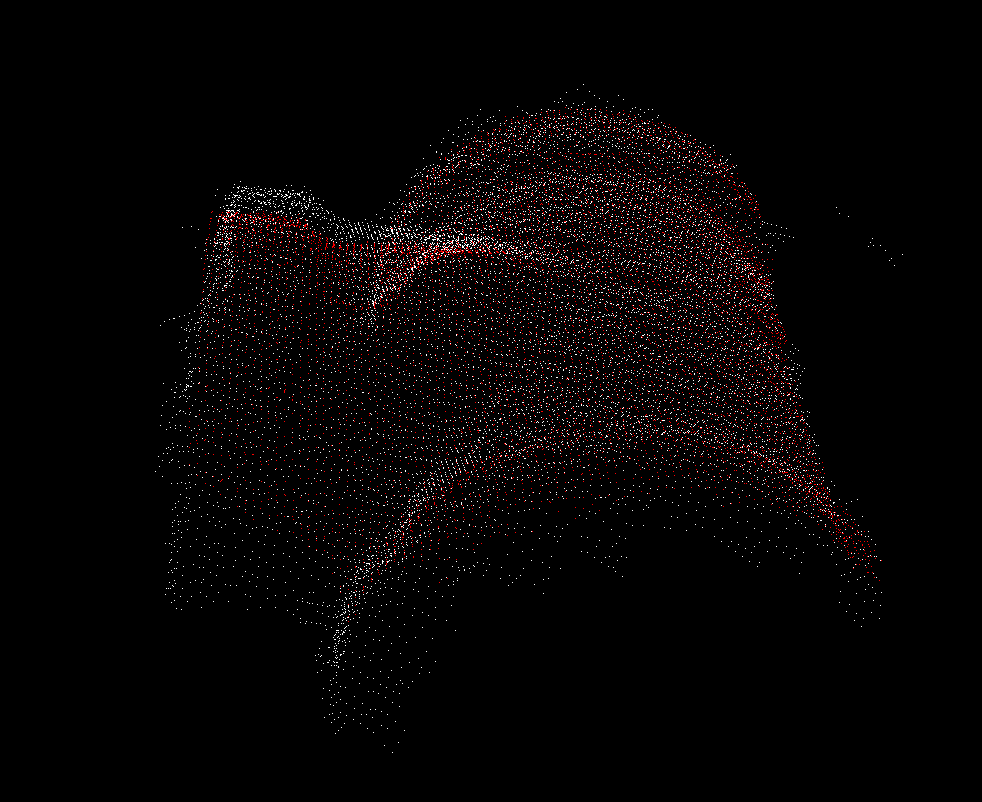

30 |
Reference point step size
Default Value |
5 |
Parameter Range |
1-50 |
Recommended Value |
1, 3, 5, 10 |
Parameter Description |
This parameter is used to select reference points for matching calculation, i.e., to select point clouds as matching points for calculation every few points. The larger the parameter value, the fewer points are involved in the matching calculation, and vice versa. |
Tuning Instructions |
If the positional deviation of the matching result calculated with the default value is relatively large, this parameter value can be appropriately reduced to increase the number of points for matching calculation and improve matching accuracy, but the calculation time will also increase. |
Upper limit of the number of output pose
Default Value |
100 |
Parameter Range |
0-100000 |
Recommended Value |
5, 10, 20, 30, 50 |
Parameter Description |
This parameter refers to the maximum number of initial poses calculated for a single point cloud. When multiple point clouds are input, the upper limit of the output result is the parameter value of [Number of input point clouds] * [Upper limit of the number of output pose]. |
Tuning Instructions |
If the number of input point clouds is 1 (the point cloud has been processed by cluster segmentation), set it according to the actual number of workpieces. To ensure sufficient correct initial results, the parameter value is generally set to be slightly larger than the number of workpieces; if the number of input point clouds is multiple (the point cloud has been subjected to cluster segmentation), the parameter value can be set to 1~5. |
Advanced Parameters
Clustering angle threshold
Default Value |
24 |
Parameter Range |
0-360 |
Recommended Value |
15, 20, 24, 30 |
Parameter Description |
This parameter is used to determine whether initial poses that have passed voting belong to the same workpiece. If the angle difference between initial poses is less than the parameter value, they are considered to belong to the same workpiece. The finally displayed matching result is the average of poses whose difference values are within the parameter range. |
Tuning Instructions |
Generally, this parameter is not adjusted. If there are few displayed matching results and the angle deviation is relatively large, this parameter value can be appropriately reduced to narrow the calculation range for pose angle clustering, output more results, and improve matching accuracy, but the calculation time will also increase. |
Clustering distance threshold
Default Value |
6 |
Parameter Range |
0-200 |
Recommended Value |
3, 6, 10 |
Parameter Description |
This parameter is used to determine whether initial poses that have passed voting belong to the same workpiece. If the distance difference between initial poses is less than the parameter value, they are considered to belong to the same workpiece. The finally displayed matching result is the average of initial poses whose difference values are within the parameter range. |
Tuning Instructions |
Generally, this parameter is not adjusted. If there are few displayed matching results and the positional deviation is relatively large, this parameter value can be appropriately reduced to narrow the calculation range for pose position clustering, output more results, and improve matching accuracy, but the calculation time will also increase. |
Voting filter threshold
Default Value |
0.5 |
Parameter Range |
0-1 |
Recommended Value |
0.1, 0.3, 0.5, 0.8, 1.0 |
Parameter Description |
This parameter is used to filter initial poses. The generated initial poses undergo a round of matching calculation, and initial poses with values greater than this value are retained; the higher this value, the more incorrect results are filtered, and the more accurate the matching result. |
Tuning Instructions |
Generally, this parameter is not adjusted. If the number of displayed matches is relatively small, this value can be appropriately reduced; if there are many displayed matches with relatively large deviations, this value can be appropriately increased. |
Model overlap threshold
Default Value |
0.1 |
Parameter Range |
0.01-1000 |
Recommended Value |
0.1, 0.3, 0.5, 1.0 |
Parameter Description |
This parameter is used to filter overlapping matching results. |
Tuning Instructions |
Generally, this parameter is not adjusted. If multiple matching results appear for one workpiece, this value can be appropriately increased to filter out duplicate matching results. |
Matching point search range
Default Value |
5 |
Parameter Range |
0-20 |
Recommended Value |
1, 3, 5, 10 |
Parameter Description |
This parameter specifies the calculation range for determining whether the template point cloud matches the scene point cloud, and is used to sort the matching results. |
Tuning Instructions |
Generally, this parameter is not adjusted. If the scene point cloud has large fluctuations, the correct matching results may occupy fewer voxels, in which case this parameter can be appropriately increased to increase the number of voxels occupied by the correct matching results (incorrect matching results will have a smaller increase in occupied voxels due to larger deviations); conversely, if the scene point cloud is relatively small, this parameter can be appropriately reduced to decrease the number of voxels occupied by incorrect results, allowing the correct results to be ranked higher. |
Parameter Tuning Experience Sharing
How to Improve 3D Coarse Matching Calculation Accuracy
Matching calculation time and accuracy are inversely proportional; improving matching accuracy will increase calculation time. "3D Coarse Matching" only calculates an approximate pose, and there is a subsequent "3D Precise Matching" operator. Therefore, the calculation accuracy of "3D Coarse Matching" does not need to be very high, and accuracy and cycle time need to be considered comprehensively. The main parameters affecting matching accuracy are "Distance discrete quantity" and "Reference point step size", followed by "Clustering angle threshold" and "Clustering distance threshold" parameters.
-
First, try to increase the "Distance discrete quantity" or decrease the "Reference point step size" parameter. This improves accuracy without significantly increasing calculation time;
-
If this is not satisfactory, simultaneously increase the "Distance discrete quantity" and decrease the "Reference point step size" parameter, paying attention to the calculation time when adjusting parameter values;
-
If still not satisfactory, then try to decrease the "Clustering angle threshold" and "Clustering distance threshold" parameters.
How to Remove Overlapping Matching Results
Overlapping matching results are directly related to the "Upper limit of the number of output pose", "Voting filter threshold", and "Model overlap threshold" parameters, and secondarily to the "Matching point search range" parameter.
-
First, decrease the "Upper limit of the number of output pose" parameter or increase the "Voting filter threshold";
-
If this is not satisfactory, then increase the "Model overlap threshold" or "Matching point search range".
